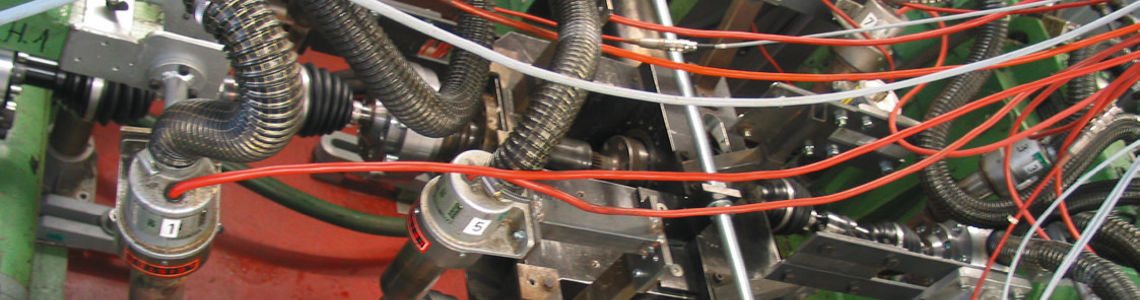

CV-Joint Test Bench for Life Cycle Tests

Application

  • Fully automated four-square-test-bench for endurance tests at side shafts, drive shafts or CV-joints. Four shafts can be tested simultaneously.

Technical Data

  • test procedures with variable torque, speed and bending angles
  • speed: 0 – ±1800 min-1
  • torque: 0 – ±2700 Nm
  • displacement of the center bearing: 0 – 310 mm
  • adjustment speed of the center bearing: max. 330 mm/s
  • selective cooling or heating of each joint
