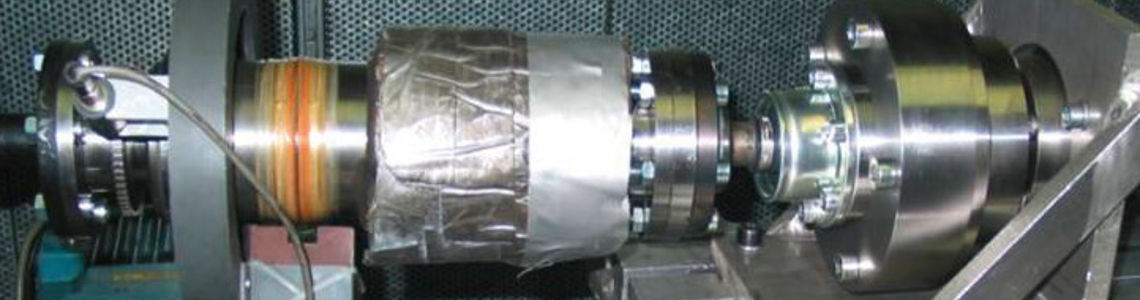

CV-Joint Test Bench for Functional Tests

Application

  • joint efficiency tests (caloric test method)
  • 3rd order axial force measurements
  • plunging force measurements
  • joint types:
    • ball joints
    • tripo joints
    • cardan joints
    • prototype joints
  • joint benchmarking

Technical Data

  • speed: 0 – 1000 min-1
  • torque: 0 – 1000 Nm
  • plunging excitation: 0.1 – 15 mm
  • plunging frequency: 0 Hz – 50 Hz
  • bending angle: 0° – 20°
  • joint temperatures: 20 °C – 140 °C
